Audi Workshop Service and Repair Manuals > A3 Mk1 > Body | General Body Assembly, Interior (Repair groups 68, 69, 70, 72, 74) | Seat frames | Front seats (5-door vehicles)

General Body Assembly, Interior (Repair groups 68, 69, 70, 72, 74)

Front seats (5-door vehicles)

Removing inner fitting panels

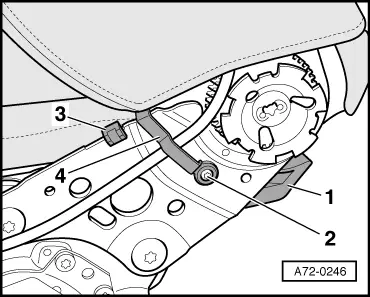

‒ Remove seat side panels =>Page 72-49 ‒ → Unscrew bolt -2-. ‒ Tightening torque 1 Nm ‒ Fold tab -4- upwards. ‒ Release retainer tab -3-. ‒ Remove fitting panels -1- by drawing downwards.
