Adjusting handbrake

Note:

Re-adjustment is only necessary on replacing handbrake cables, brake calipers and brake discs.

• ‒ Take rear ashtray out of centre console.

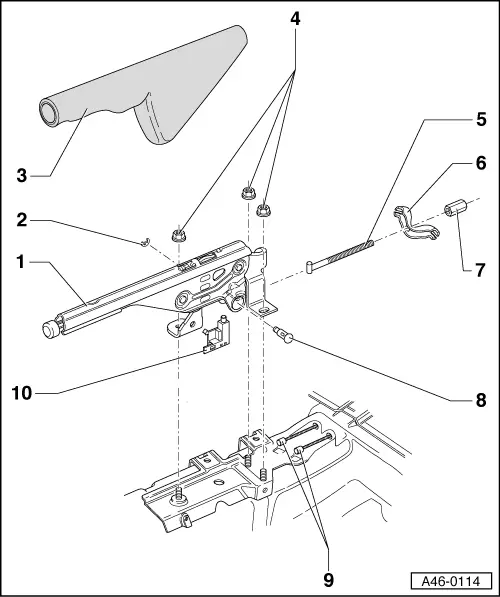

• ‒ → With handbrake lever in rest position, tighten adjusting nut
  -arrow- ...

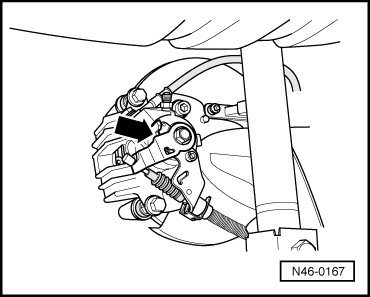

• ‒ → ... until levers -arrow- at brake calipers are lifted off stop.
• ‒ The maximum permissible distance from the stop on either side is 3 mm.
• ‒ Apply handbrake firmly 3 times and then release.
• ‒ With handbrake released, check whether both wheels turn freely.

Note:

Due to the automatic adjustment of the rear brake, it is no longer necessary to adjust the handbrake after performing re-adjustment work.
