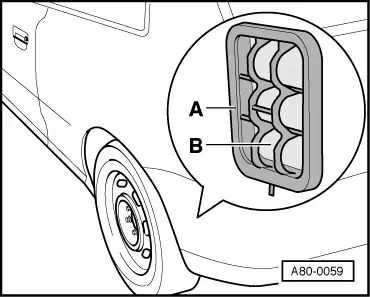

• ‒ → The sealing lips -B- in the vent frame -A- must move freely and close automatically.

Notes:

• ◆ The illustrations show the vent frame after removal of the rear bumper.
• ◆ The vehicle is fitted with two vent frames (left and right) for forced air extraction.
• ◆ In order for the vehicle interior ventilation to work properly, the air ducts which run through the luggage compartment trim must be unobstructed.
