A3 Mk1

Heating, Air Conditioner
Servicing heating
Removing and installing windscreen defroster vent

A80-0058
  • ‒ Remove dash panel fascia.

=> Inner Body Assembly; Repair group 70

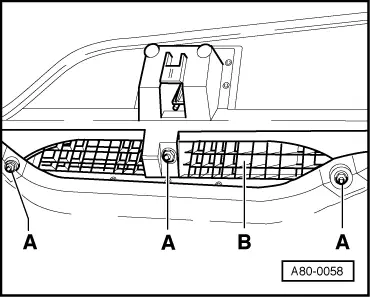

  • ‒ → Remove speed nuts -A- and detach defroster vent -B-from dash panel fascia.
