Connection Diagram for Bowden Cables to Heater Control | A3 Mk1 Heating System

Heating, Air Conditioner
Servicing heating

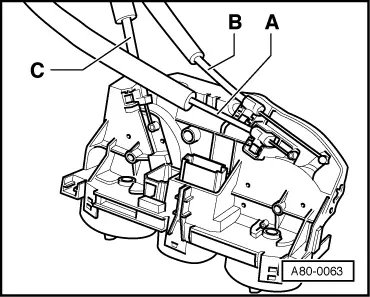

Connection diagram for Bowden cables to the heater control

A80-0063

Note:

Colours in brackets apply to right-hand drive vehicles.

  • ‒ → Bowden cable -A- to footwell/defrost flap.
  • Colour: Green (black).
  • ‒ Bowden cable -B- to central flap.
  • Colour: Yellow (grey).
  • ‒ Bowden cable -C- for temperature flap.
  • Colour: Brown (white).
