Connection diagram for Bowden cables to the heater control > < Removing and installing heater control

A3 Mk1

Heating, Air Conditioner
Servicing heating
Detaching and fitting Bowden cables from/on heater control

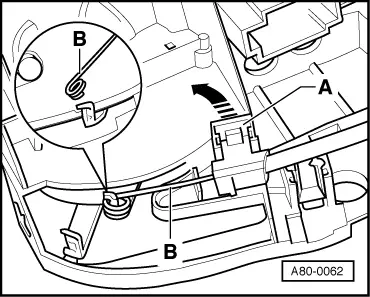

A80-0062
  • ‒ Remove heater control.
  • ‒ → Unclip Bowden cable support bracket -A-.
  • ‒ Detach Bowden cable.

Notes:

  • ◆ Check the Bowden cables before fitting, replace stiff or damaged Bowden cables
  • ◆ Attach wire core -B- the correct way round (end of coil positioned below).
