Removing and installing centre dash-panel vents > < Servicing heating

A3 Mk1

Heating, Air Conditioner
Servicing heating
Dash panel vents and air ducts

Note:

The passenger compartment is ventilated by 2 venting frames (in the boot, on the left and right in the area of the bumper) .

  • Dash panel fascia
    • ◆ Removing and installing.

=> Inner Body Assembly; Repair group 70

  • Defroster vent for "side window"
    • ◆ Removing and installing.

=> Inner Body Assembly; Repair group 70

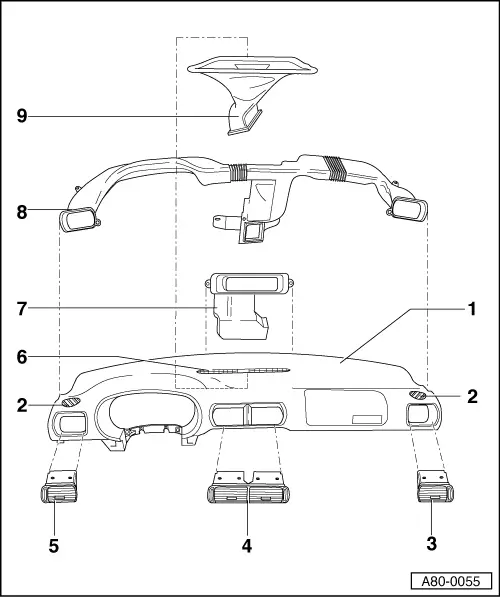

A80-0055
  • Dash panel vent, right
    • ◆ Removing and installing .
  • Centre dash panel vent
    • ◆ Removing and installing .
  • Dash panel vent, left
    • ◆ Removing and installing => Page 80-5.
  • Windscreen defroster vent
    • ◆ Removing and installing .
  • "Centre" dash panel vent air duct

A80-0055
  • "Left and right" dash panel vent air duct
    • ◆ Fastened to the dash panel fascia with clamping washers.
  • Air duct to defroster vent
    • ◆ Removing and installing
