Heating, Air Conditioner
Servicing heating
Removing and installing centre dash-panel vents
‒

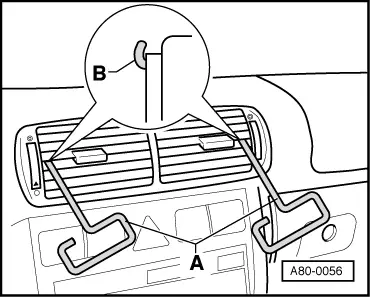

→ Insert auxiliary tools -A- in dash panel vent and withdraw dash panel vent evenly from dash panel.
Note:
Attach hook -B- of the auxiliary tool to the housing rear to prevent damage to the vent.
