• ‒ Remove glove compartment.

=> Inner Body Assembly; Repair group 68

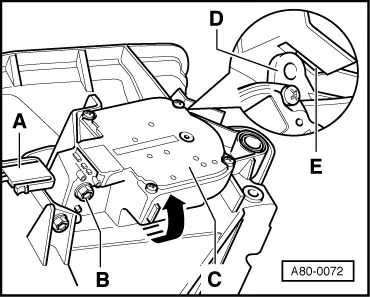

• ‒ → Detach connector -A-.
• ‒ Remove bolt -B-.
• ‒ Remove positioning motor in direction of arrow.

Installation notes:

• ◆ When inserting the positioning motor, ensure that the bracket -D- is correctly positioned in slot -E-.

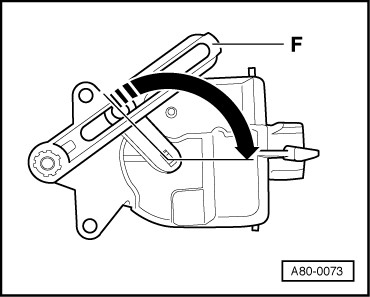

• ◆ → If the positioning motor is in an awkward position for installation, attach connector -A-, switch on ignition and set lever arm -F- on positioning motor to centre position by actuating the fresh/recirculated air flap switch.
