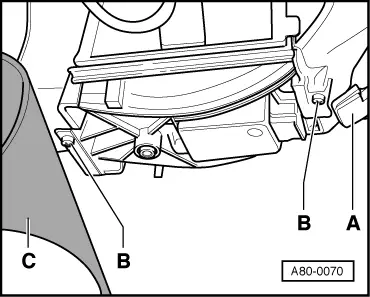

• ‒ Remove bolt clip for foam cover.
• ‒ Fold foam cover -C- to one side.
• ‒ → Disconnect connector -A- from series resistor.
• ‒ Remove screws -B- and remove resistor holder.

Removing the series resistor from its holder

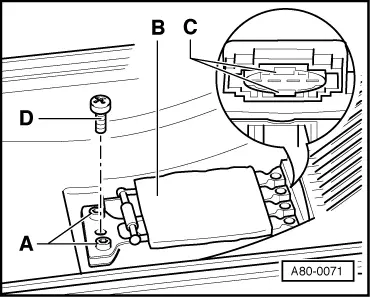

• ‒ → Drill off or detach securing elements -A-.
• ‒ Push back catches -C-.
• ‒ Remove series resistor -B-.

Note:

When installing, fasten series resistor with self-tapping screw -D- 3.2 x 10 mm.
