Servicing gear lever and selector housing

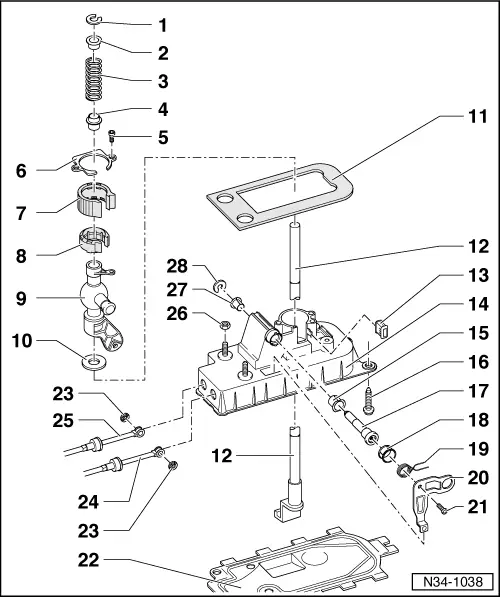

Servicing gear lever and selector housing
  Note
Lubricate all bearings and moving surfaces with polycarbamide grease -G 052 142 A2-.
1 - Securing clip
q   Removing and installing → Fig.
2 - Bush
3 - Spring
4 - Bush
5 - Bolt
q   6 Nm
6 - Cover
7 - Damper
8 - Bearing shell
q   Insert in damper → Item
9 - Gear lever guide
10 - Damping washer
11 - Gasket
q   Between selector housing and floor
q   Self-adhesive
q   Glue onto selector housing
12 - Gear lever
13 - Damper
q   Press onto selector housing
14 - Selector housing
15 - Bearing bush
q   Only fits in one position
16 - Bolt
q   25 Nm
17 - Pivot pin
18 - Guide bush
q   Press onto selector housing
19 - Spring
q   Installing → Fig.
20 - Gate selector lever
21 - Bolt
q   6 Nm
22 - Floor plate
q   With gasket
q   Bend tabs open to remove
q   Renew
23 - Securing clip
24 - Gate selector cable
q   On gate selector lever
q   Installation position → Chapter
25 - Gear selector cable
q   Press onto gear lever guide
q   Installation position → Chapter
26 - Nut
q   25 Nm
27 - Bearing bush
q   Only fits in one position
28 - Securing clip

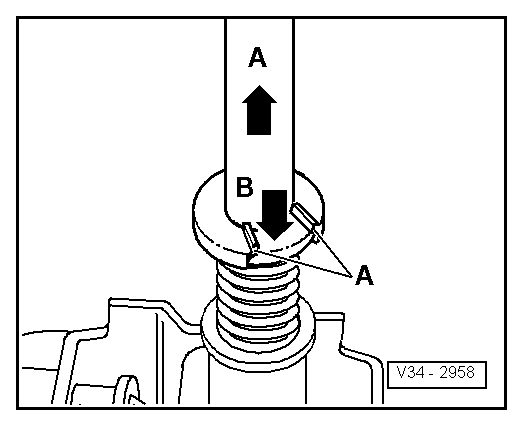

Removing and installing securing clip
–  To remove and install securing clip, pull gear lever in direction of -arrow A- and at the same time push down spacer bush onto stop with a screwdriver in direction of -arrow B-.
  Note
Do not tilt spacer bush when pushing down. Carefully release pressure at groove in gear lever for securing clip.
  V34-2958

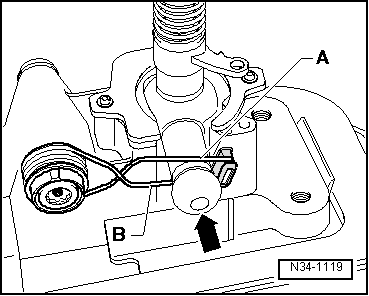

Installing spring
–  Insert spring so that extension -A- lies on top of pin -arrow-.
–  Then pull extension -B- down so that it sits below pin -arrow-.
  N34-1119
