Removing and installing over-centre spring
Removing and installing over-centre spring
Special tools and workshop equipment required

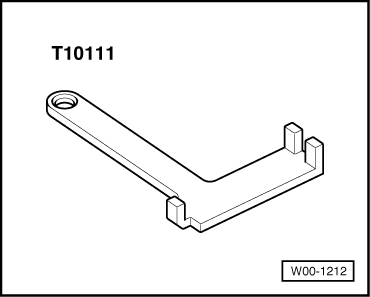

t  Assembly clip -T10111-
Removing
–  Remove storage compartment on driver's side → General body repairs, interior; Rep. Gr.68.
  W00-1212

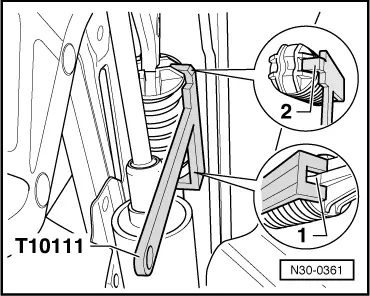

–  Fit assembly clip -T10111- from the right onto over-centre spring.
–  Ensure that the assembly clip is correctly seated:
The rear part of assembly clip must be positioned on the over-centre spring so that the claws fit exactly over the rib -1-.
–  Lightly depress clutch pedal towards bulkhead.
–  Engage the lug -2- of the assembly clip into the cut-out on the over-centre spring.
–  Now depress the clutch pedal towards the bulkhead until the over-centre spring can be removed from below from the mountings on the mounting bracket and clutch pedal.
–  Return clutch pedal to normal position.
  N30-0361

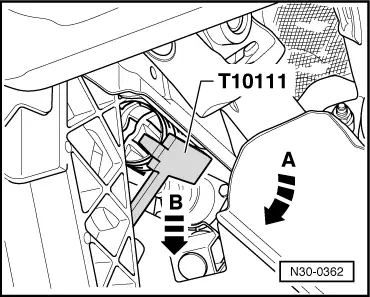

–  Turn over-centre spring together with assembly clip -T10111- in direction of -arrow A- and take out downwards in direction of -arrow B-.
Installing
–  Pull clutch pedal into the passenger compartment.
  N30-0362

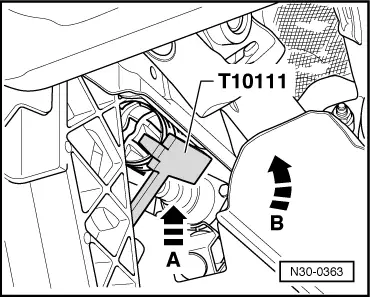

–  Insert over-centre spring together with assembly clip -T10111- upwards (in direction of -arrow A-) into mounting bracket and then turn in direction of -arrow B-.
  N30-0363

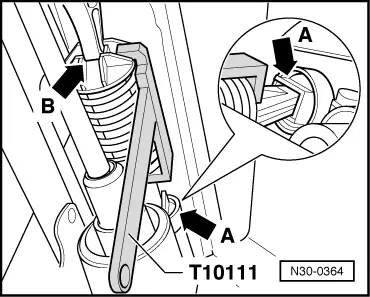

–  Insert over-centre spring into rear mounting first -arrow A-.
–  Operate clutch pedal until the over-centre spring seats on the mounting lug -arrow B- on the clutch pedal.
–  Return clutch pedal to normal position and remove the assembly clip.
–  Install storage compartment on driver's side → General body repairs, interior; Rep. Gr.68.
  N30-0364
