A3 Mk1

Checking gearbox speed senderG38 with 2-pin connector
Checking gearbox speed sender -G38- with 2-pin connector

–  Press release tabs -arrows- on the sides to unplug electrical connector-4- and pull off upwards.
  A38-0054
–  Connect multimeter for resistance measurement between contacts on the 2-pin connector and the sockets on adapter cable, (68-pin) -V.A.G 1598/18A- (test box), as shown in the following table.
l  Specification: in each case less than 1.5 Ω.

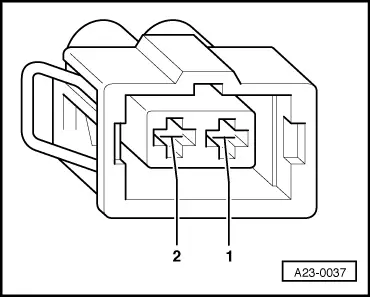

  A23-0037
Connector
Contact		-V.A.G 1598/18A-
Socket		Connector
Contact		-V.A.G 1598/18A-
Socket
121266

  Note
t  If readout does not match specification, rectify open circuit in wiring according to current flow diagram and check connector for contact corrosion, moisture and leaks.
t  If readout obtained in this wiring check matches specification, gearbox speed sender -G38- must be renewed → Rep. Gr.38.
