Installing engine > < Separating engine and gearbox

A3 Mk1

Securing engine to assembly stand

Securing engine to assembly stand

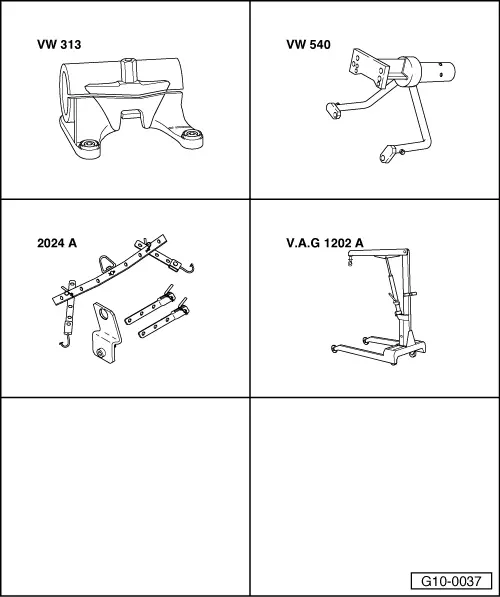

Special tools and workshop equipment required
t  Support clamp -VW 313-
t  Engine and gearbox support -VW 540-
t  Lifting tackle -2024 A-
t  Workshop hoist -6100- or -V.A.G 1202 A-


Procedure

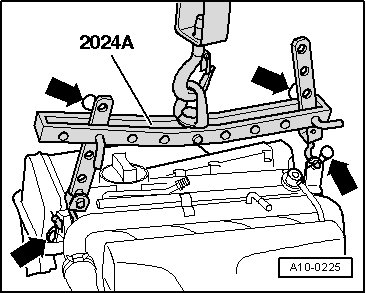

–  Hook lifting tackle -2024 A- onto engine and workshop hoist -6100-.
  Note
To adjust to the centre of gravity of the assembly, the perforated rails of the support hooks must be positioned as shown.
  WARNING
The support hooks and retaining pins on the lifting tackle must be secured with locking pins -arrows-.
–  Lift engine off engine and gearbox jack -V.A.G 1383 A- using workshop hoist -6100-.
  A10-0225

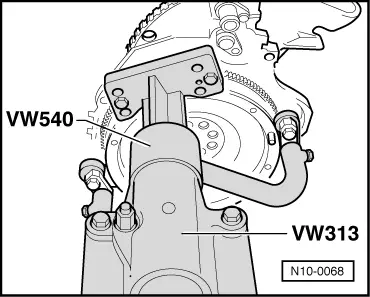

–  When carrying out repairs, secure engine to assembly stand with engine and gearbox support -VW 540-.
  N10-0068
