Requirements for test:

• ● Coolant temperature at least 80 °C
• ● Electrical consumers switched off (radiator fan must not run during the test)
• ● Air conditioner switched off
• ● Vehicles with automatic gearbox: selector lever in position P or N
• ● No faults stored in fault memory

Work sequence

• ‒ Connect the vehicle diagnostic, testing and information system VAS 5051 => Page 01-2, and select the vehicle system "01 - Engine electronics" from the menu. When doing this the engine should be idling.

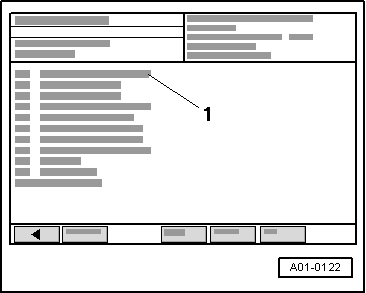

→ Display on VAS 5051:

• ‒ Select the diagnosis function "04 - Basic settings" from the menu -1-.

→ Display on VAS 5051:

•     1     Enter display group

• ‒ Using the keypad -2-, enter the required display group number (3 figures) and confirm entry with the Q button.

→ Display on VAS 5051:

•     1 -    Display group X
  System in basic setting
•     2 -    Display zone 1
• Display zone 2
• Display zone 3
• Display zone 4

• ‒ Press the ◂ button to exit from diagnosis function "04 - Basic settings".
