Checking gear oil level and filling up with gear oil
Checking gear oil level and filling up with gear oil
  Caution
It is not possible to check the gear oil level by removing the oil filler plug.

  N34-10684

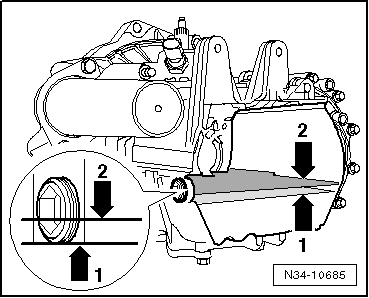

Due to the inclination of the engine/gearbox assembly, the oil level -arrow 2- will be above the lower edge of the filler hole -arrow 1-.
The gear oil level can only be checked by draining the gear oil completely and then filling up again.
Carry out the steps described in the chapters specified below in the following order:
l  → Chapter „Preparations“
l  → Chapter „Draining off gear oil“
l  → Chapter „Filling up with gear oil“
Special tools and workshop equipment required
  N34-10685
t  Used oil collection and extraction unit -V.A.G 1782-
t  Hose (length approx. 600 mm, outside diameter 10 mm) with funnel (commercially available)
  W00-10211
