A3 Mk2

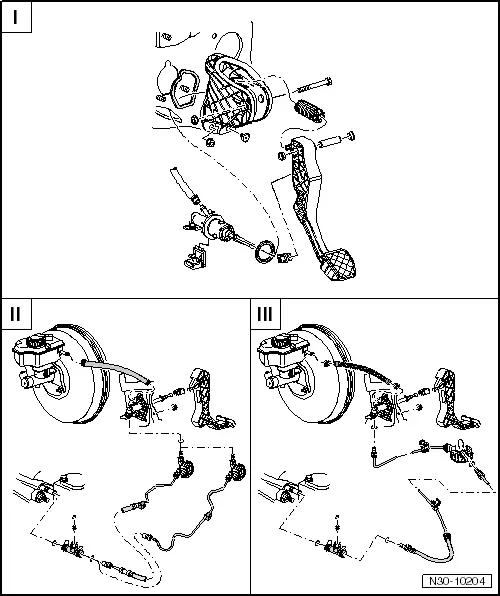

Overview - clutch mechanism
Overview - clutch mechanism
  Note
If you suspect a defective clutch master cylinder or clutch slave cylinder, pay attention to → Chapter „Notes on removing and installing clutch master cylinder and slave cylinder“ and perform → Chapter „Function check for clutch master cylinder and slave cylinder“ prior to renewing.

I -  → Chapter „Exploded view - pedal cluster, clutch master cylinder“
→ Chapter „Removing and installing over-centre spring“
→ Chapter „Removing and installing clutch pedal“
→ Chapter „Removing and installing mounting bracket“
→ Chapter „Removing and installing clutch position sender -G476-“
→ Chapter „Removing and installing clutch master cylinder“
II -  → Chapter „Exploded view - hydraulics (LHD)“
→ Chapter „Removing and installing pipe/hose assembly or plastic pipe“
→ Chapter „Bleeding clutch system“
III -  → Chapter „Exploded view - hydraulics (RHD)“
