Exploded view - pedal cluster, clutch master cylinder
Removing and installing over-centre spring
Removing and installing over-centre spring
Removing and installing over-centre spring
Special tools and workshop equipment required
t
Assembly tool -T10178-
t
Grease -G 000 450 02-
Removing
l
Clutch pedal mounting bracket fitted in vehicle
–
Move driver's seat away from pedals.
–
Remove storage compartment on driver's side
→ General body repairs, interior; Rep. gr.68
.
–
Unscrew bolt
-arrow A-
and remove footwell vent (front left)
-1-
.
–
Unclip wiring harness at rear of footwell vent
-1-
and move clear to one side.
–
Unbolt crash bar
-2-
(secured by one or two bolts
-arrows B-
, depending on version).
–

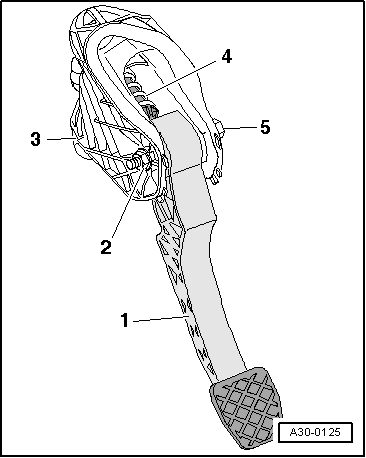

Unbolt clutch pedal
-1-
from mounting bracket
-3-
. To do this, remove nut
-2-
and pull out bolt
-5-
.
Note
The clutch pedal does not have to be detached from the operating rod on the clutch master cylinder.
–
Pivot clutch pedal down slightly and and take over-centre spring
-4-
out of mounting bracket.
Installing
l
Tightening torque
→ Chapter
Installation is carried out in reverse sequence; note the following:
Note
t
Renew self-locking nut.
t
Lubricate all bearings and contact surfaces with grease -G 000 450 02-.
–
Fit over-centre spring
-2-
into mounting bracket from above while holding end of spring in correct position with assembly tool -T10178-.
l
Socket
-arrow-
of over-centre spring must be in vertical position.
–

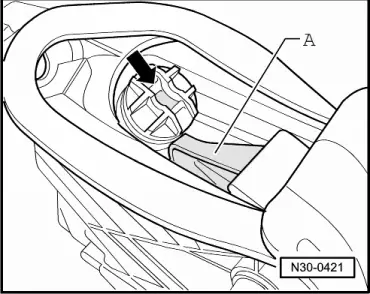

Fit actuator on clutch pedal
-A-
into corresponding socket in over-centre spring
-arrow-
.
–
Press clutch pedal slightly, push bolt through and tighten self-locking nut.
–
Install crash bar
→ Fig.
.
–
Install footwell vent (front left)
→ Heating, air conditioning; Rep. gr.80
.
–
Install storage compartment on driver's side
→ General body repairs, interior; Rep. gr.68
.
