6-speed manual gearbox 0AG (Gearbox identification): Technical data

Make

Audi

Model

A3 Mk2

Section

6-speed manual gearbox 0AG › Technical data › Gearbox identification

Power transmissionGearbox identification

Gearbox identification The 6-speed manual gearbox 0AG is fitted in conjunction with 4-cylinder injection engines in the Audi A3 2004 >. Allocation → Chapter.

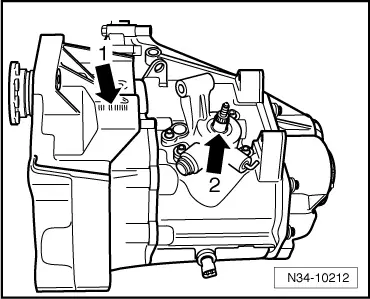

Location on gearbox t  Code letters and date of manufacture -arrow 1- t  Manual gearbox 0AG -arrow 2-

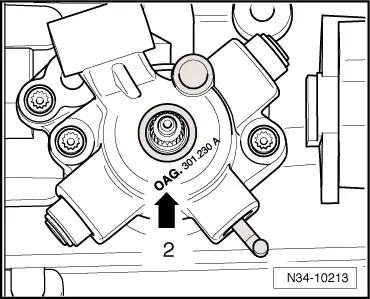

Manual gearbox 0AG -arrow 2-

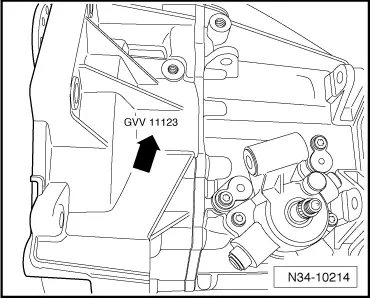

Code letters and date of manufacture of gearbox -arrow-

Example:	GVV	11	12	3
	I	I	I	I
	Code letters	Day	Month	Year (2003) of manufacture

Additional data identify the factory where the unit was built.   Note The gearbox code letters are also given on the vehicle data stickers.
