Removing and installing gearbox output speed sender G195
Removing and installing gearbox output speed senderG195
Removing and installing gearbox output speed sender -G195-
Note!
t
Rules for cleanliness when working on the automatic gearbox
→ Chapter
.
t
General repair instructions
→ Chapter
.
Removing gearbox output speed sender -G195-
Caution
Follow steps required when disconnecting battery
→ Electrical system; Rep. Gr.27
.
–

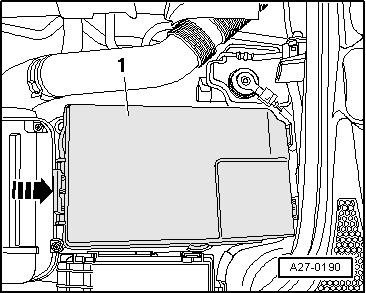

Press release tab
-arrow-
and remove cover
-1-
over battery.
–

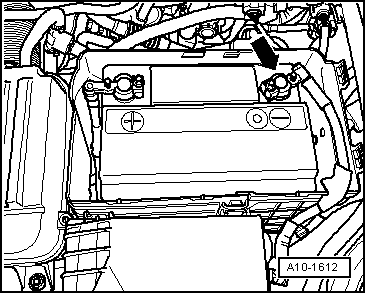

With ignition switched off, disconnect earth wire
-arrow-
at battery.
–
Remove oil pan
→ Chapter
.
–
Remove ATF strainer
→ Chapter
.
–
Remove valve body
→ Chapter
.
–
Remove bolt
-2-
.
–
Pull gearbox output speed sender -G195- with wire
-B-
out of gearbox.
Installing gearbox output speed sender -G195-
Installation is carried out in reverse sequence; note the following:
–
Lightly lubricate O-ring at sender with ATF.
–
Carefully push gearbox output speed sender -G195- into gearbox as far as it will go.
Component
Nm
Gearbox output speed sender -G195- to gearbox, bolt M5
6,5
