Removing and installing gearbox input speed sender G182
Removing and installing gearbox input speed senderG182
Removing and installing gearbox input speed sender -G182-
Note!
t
Rules for cleanliness when working on the automatic gearbox
→ Chapter
.
t
General repair instructions
→ Chapter
.
Removing gearbox input speed sender -G182-
Caution
Follow steps required when disconnecting battery
→ Electrical system; Rep. Gr.27
.
–

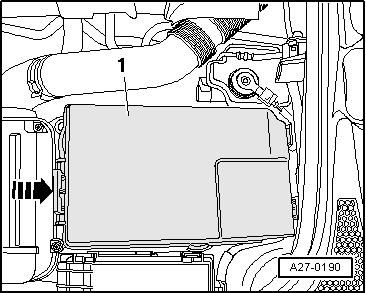

Press release tab
-arrow-
and remove cover
-1-
over battery.
–
With ignition switched off, disconnect earth wire
-arrow-
at battery.
–
Remove oil pan
→ Chapter
.
–
Remove ATF strainer
→ Chapter
.
–
Remove valve body
→ Chapter
–
Remove bolt
-1-
.
–
Pull gearbox input speed sender -G182- with wire
-A-
out of gearbox.
Installing gearbox input speed sender -G182-
Installation is carried out in reverse sequence; note the following:
–
Carefully push gearbox input speed sender -G182- into gearbox as far as it will go.
Component
Nm
Gearbox input speed sender -G182- to gearbox, bolt M6
5,5
