A3 Mk2

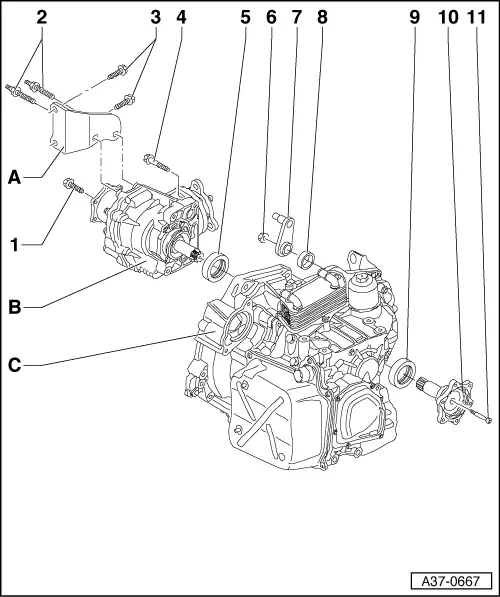

| Exploded view - flange shaft (left-side), oil seals and bracket for bevel box |
| 1 - | Countersunk bolt |
| q | For flange shaft (right-side) |
| q | Renew |
| q | 30 Nm |
| q | → Chapter „Removing and installing flange shaft (right-side)“ |
| q | → Chapter „Renewing flange shaft oil seal (right-side) at bevel box (outer seal)“ |
| 5 - | Oil seal between bevel box and gearbox (on gearbox) |
| q | → Chapter „Renewing oil seal between bevel box and gearbox (on gearbox)“ |
| 6 - | Nut |
| q | 20 Nm |
| 7 - | Gearbox selector lever |
| q | Removing and installing → Chapter „Renewing oil seal for selector shaft“ |
| 8 - | Oil seal for selector shaft |
| q | → Chapter „Renewing oil seal for selector shaft“ |
| 9 - | Oil seal for flange shaft (left-side) |
| q | → Chapter „Renewing oil seal for flange shaft (left-side)“ |
| 10 - | Flange shaft (left-side) |
| q | → Chapter „Removing and installing flange shaft (left-side)“ |
| 11 - | Countersunk bolt |
| q | Renew |
| q | 30 Nm |
| A - | Bracket for bevel box |
| q | → Fig. „Bracket for bevel box on vehicles with 4-cylinder 2.0 ltr. TFSI engine: tightening torque and sequence“ |
| q | → Fig. „Bracket -A- for bevel box on vehicles with 6-cylinder 3.2 ltr. engine: tightening torque and sequence“ |
| B - | Bevel box |
| C - | Gearbox |
