Checking function of Haldex coupling (generation „Haldex IV“), rear final drive „0BR“, „0BS“ and „0BY“
Checking function of Haldex coupling (generation „Haldex IV“), rear final drive „0BR“, „0BS“ and „0BY“

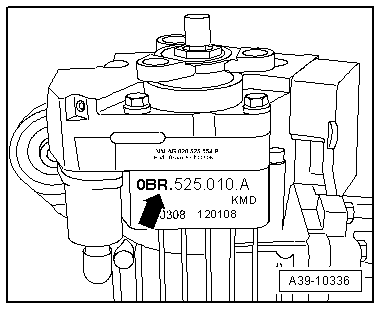

Identification marking on rear final drive „0BR“ and „0BY“
  Note
t  The identification -arrow- on the underside of the final drive unit indicates which final drive version is installed.
t  The Haldex coupling can be checked by road-testing the vehicle and using the vehicle diagnostic tester.
  A39-10336
Identification marking on rear final drive „0BS“
  WARNING
To avoid any risk of accident, observe the → Chapter „Safety precautions“ when road-testing the vehicle and using test equipment.
  A39-10526
–  With ignition switched off, connect vehicle diagnostic tester using diagnosis cable.
Fitting location: footwell (front left), next to bonnet release lever.
Starting „Guided Functions“:
–  Switch on ignition.
–  Touch the symbol or button „Guided Functions“ on the screen.
–  Select the options on the tester in this sequence:
t  Brand
t  Model
t  Model year
t  Version
t  Engine code letters
t  Confirm the data entered.
t  22 - 4WD electronics
t  22 - Final control diagnosis
–  Start final control diagnosis and follow instructions appearing on tester.
