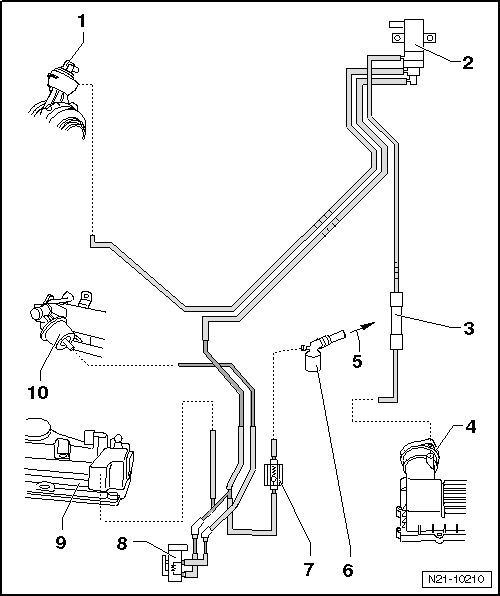

Diagram of vacuum connections

Caution

When routing vacuum lines, make sure they are not kinked, twisted or crushed. Otherwise the engine can stop or fail to start.

1 -	Vacuum unit

q	On turbocharger

q	With position sender for charge pressure positioner -G581-

2 -	Charge pressure control solenoid valve -N75-

3 -	Noise insulation

4 -	Air cleaner housing

5 -	To brake servo

6 -	Connection piece

q	On vacuum pump

7 -	Non-return valve

q	Note installation position

8 -	Exhaust gas recirculation cooler change-over valve -N345-

q	Checking change-over function → Chapter

9 -	Cylinder head cover

10 -	Vacuum unit

q	For change-over function for exhaust gas recirculation cooler
