Separating engine from manual gearbox

Separating engine from manual gearbox

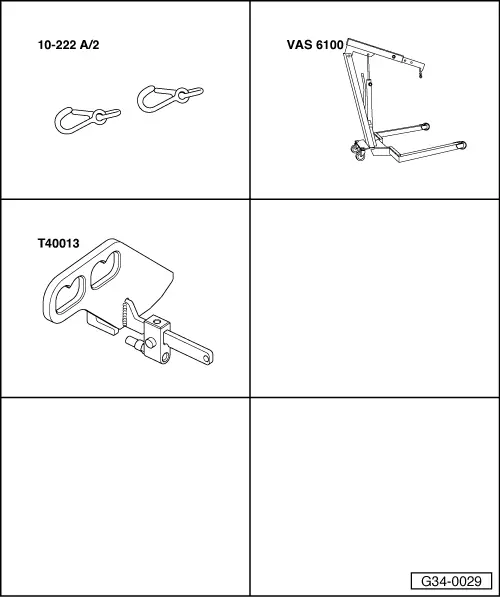

Special tools and workshop equipment required
t  Hooks -10-222 A/2-
t  Workshop hoist -VAS 6100-
t  Lifting tackle -T40013-


Procedure
l  Engine/gearbox assembly removed and attached to engine support.

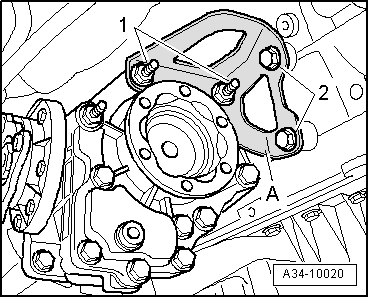

–  Unscrew bolts -1- and -2- at bracket -A- for bevel box and remove bracket.
  A34-10020

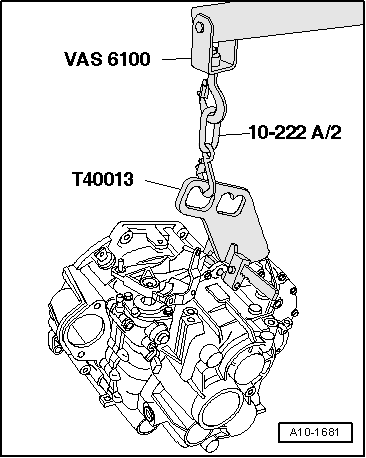

–  Attach lifting tackle -T40013- to gearbox and close lock.
–  Attach workshop hoist -VAS 6100- with hooks -10-222 A/2- to the lifting tackle.
  A10-1681

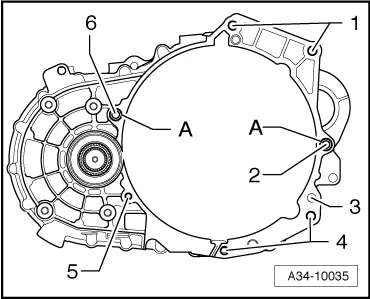

–  Remove bolts -1 ... 6- on engine/gearbox flange.
–  Separate gearbox from engine.
  A34-10035
