Removing and installing secondary air pump
Removing and installing secondary air pump

Removing
–  Disconnect secondary air hose at the position marked with an -arrow-.
–  Move air hose to secondary air pump clear.
  A10-1791

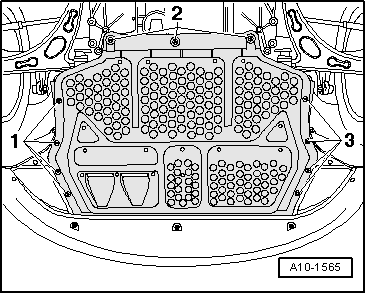

–  Remove centre noise insulation -fasteners 1 ... 3-.
  A10-1565

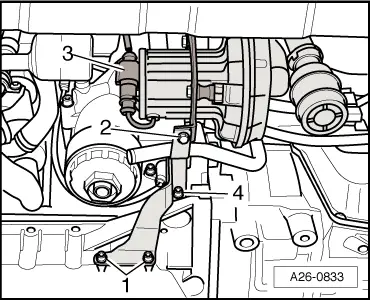

–  Move coolant hose at bottom of radiator cowl clear.
–  Detach electrical connector -3- at secondary air pump motor -V101- and move wire clear.
–  Unscrew bracket -2- for coolant pipe going to gearbox oil cooler on vehicles with direct shift gearbox.
–  Remove bolts -1-.
–  Loosen bolt -4- and remove secondary air pump with bracket.
Installing
Install in reverse order.
Tightening torques
  A26-0833
ComponentNm
Secondary air pump to bracket10
Bracket for secondary air pumpM610
to cylinder blockM820
