A3 Mk2
Power unit
TDI injection and glow plug system (4-cyl. 1.6 ltr. 4-valve common rail) / Fuel preparation system Diesel injection
Fuel rail and injectors
Installing high-pressure pipes
Installing high-pressure pipes
Installing high-pressure pipes
Special tools and workshop equipment required
t
Torque wrench -V.A.G 1331-
t

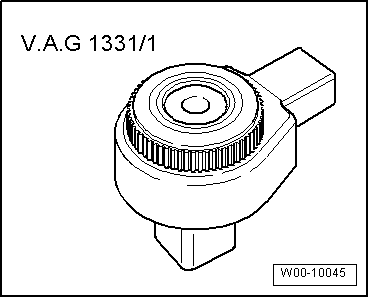

Ratchet -V.A.G 1331/1-
t
Open end spanner insert, AF 17 -V.A.G 1331/6-
t
Socket -T40055-
t

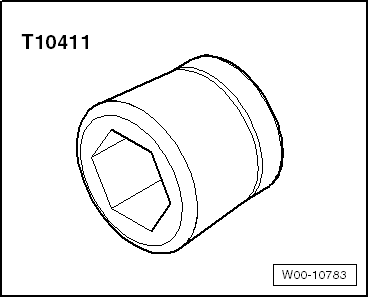

Support sleeve -T10411-
Procedure
Note
t
Note identification marks for cylinder allocation when re-installing high-pressure pipes.
t
The high-pressure pipes can be re-used after performing the following checks:
t
Check taper seats of high-pressure pipes for deformation and cracks.
t
The bore of the pipe must not be distorted, restricted or otherwise damaged.
t
Corroded pipes must not be used again.
–
Use vacuum cleaner to remove dirt from taper seat at fuel rail.
–
Clean fuel pipe and end of pipe using cleaning solution and dry with compressed air.
–
Lubricate threads of union nuts with fuel.
–
Initially hand-tighten union nuts on high-pressure pipes (ensure that pipes are not under tension).
–
Tighten high-pressure pipes between injectors and fuel rail first at injector and then at fuel rail.
–
To install high-pressure pipe between high-pressure pump and fuel rail, slide support sleeve -T10411- onto fuel pressure sender -G247-.
Note
t
To position union nut on high-pressure pump, it must be possible to move bracket (for engine lifting eye); for this, loosen bolts
-4-
.
t
Support sleeve -T10411- gives correct distance between fuel pressure sender -G247- and high-pressure pipe.
–

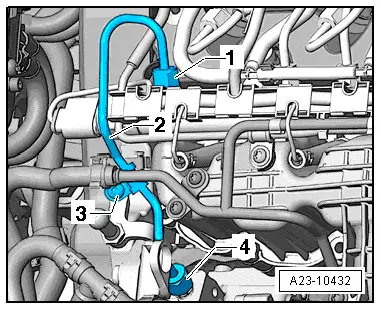

Tighten high-pressure pipe
-2-
between high-pressure pump and fuel rail first at high-pressure pump
-4-
and then at fuel rail
-1-
.
–
Tighten bolt
-3-
for bracket for high-pressure fuel pipe.
–
Secure bracket (for engine lifting eye).
t
Tightening torques: refer to exploded view of fuel system
→ Chapter
.
–
Check fuel system for leaks
→ Chapter
.
