Removing and installing intake manifold - vehicles with engine codes AZV, BKD

Removing

–	Remove intake manifold flap motor -V157- → Chapter.

–	Detach vacuum hose -1-.

–	Unscrew bolt -2- and detach vacuum reservoir from bracket.

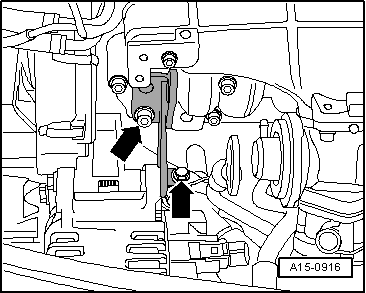

–	Remove bolts -arrows-.

–	Remove right engine lifting eye.

–	Unclip bracket -3- for fuel hoses on left engine lifting eye.

–	Remove bolts -1- and -2-.

Note

Disregard -item 4-.

–	Remove intake manifold -arrows-.

Note

The centre top bolt is located inside the intake manifold.

Installing

Installation is carried out in the reverse order; note the following:

Note

t	Renew gaskets and seals.

t	Secure all hose connections with the correct type of hose clips (same as original equipment) → Parts catalogue.

–	Install intake manifold flap motor -V157- → Chapter.

–	When installing air pipes/air intake hoses with plug-in connectors, ensure that the securing clip -arrow- engages audibly in the retaining lug -A-.

Tightening torques

Component	Nm
Intake manifold to cylinder head	22
Fuel pipes to intake manifold	10
Engine lifting eye to intake manifold	22
Guide tube for oil dipstick to engine lifting eye	10
Mechanical exhaust gas recirculation valve to intake manifold	10
EGR connecting pipe to mechanical exhaust gas recirculation valve	22
Connecting pipe for exhaust gas recirculation to connection	10
