A4 Cabriolet Mk2

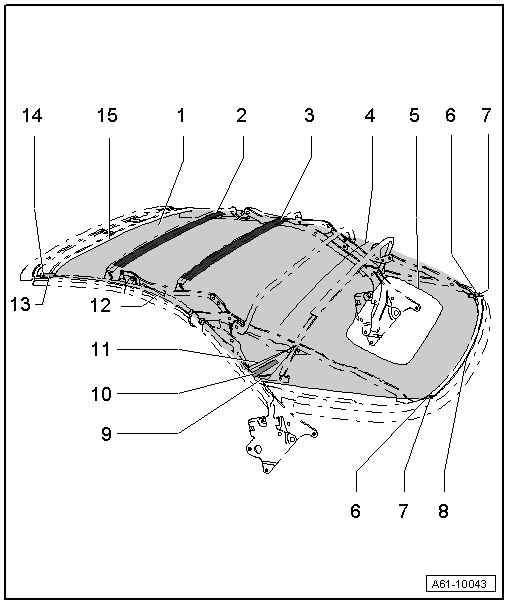

| Exploded view of convertible top headliner |
| 1 - | Convertible top headliner |
| 2 - | Plastic strip |
| 3 - | Plastic strip |
| 4 - | Zip |
| 5 - | Rear window frame |
| 6 - | Tongue |
| 7 - | Rivet |
| 8 - | Plastic strip |
| 9 - | Tensioning strap 3 |
| 10 - | Retaining strap |
| 11 - | Tensioning strap 2 |
| 12 - | Tensioning strap 1 |
| 13 - | Tongue |
| 14 - | Bolt |
| 15 - | Securing strip |
