A4 Cabriolet Mk2

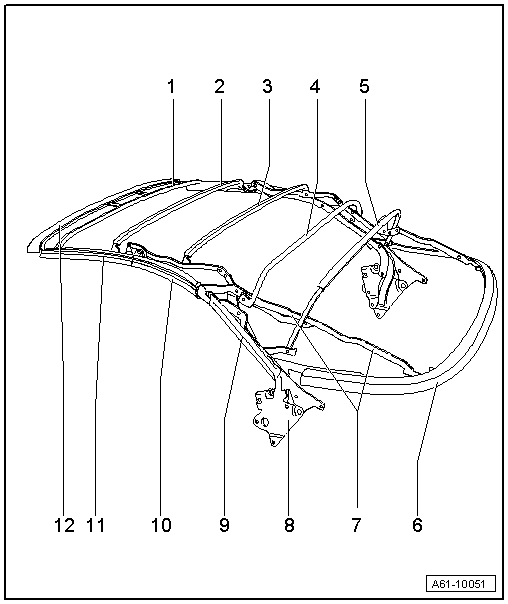

| Convertible top component designations |
Note| These component designations are used in the description of convertible top headliner, cover and padding removal and installation. |

| 1 - | Bracing hoop “1” |
| 2 - | Bracing hoop “2” |
| 3 - | Bracing hoop “3” |
| 4 - | Bracing hoop “4” |
| 5 - | Bracing hoop “5” |
| 6 - | Bow |
| 7 - | Dead point strut |
| 8 - | Main support |
| 9 - | Main guide element |
| 10 - | Roof guide element “2” |
| 11 - | Roof guide element “1” |
| 12 - | Front bracing hoop |
