A4 Cabriolet Mk2

Removing and installing front bracing hoop trim
Removing and installing front bracing hoop trim

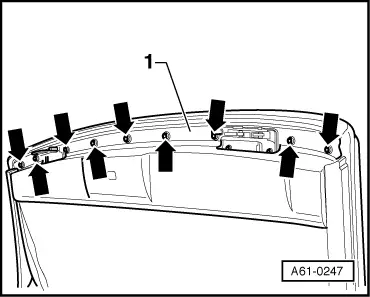

–  Screw out the bolts -arrows-.
–  Carefully detach the trim.
Install in reverse order.
Tightening torque → Chapter
  A61-0247
