Renewing seat pan (standard seat)

Note

Only sports seat pans are available as replacement parts. Convert the sports seat pan if you require a standard seat pan.

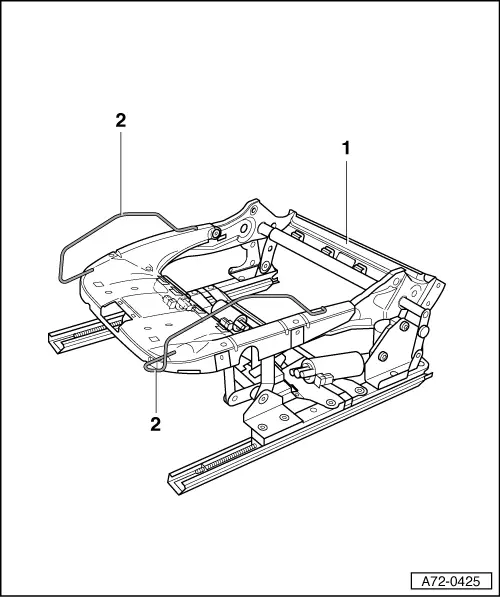

1 -	Sports seat pan

t	Conversion

–	Detach support wires -2- (2x) from sports seat pan -1-.

–	Restore paintwork structure according to specifications in „Vehicle Paintwork“ manual and if necessary carry out corrosion protection measures as described in „Surface Treatment/Chemical Materials“ manual.

2 -	Support wires (2x)
