Renewing backrest (standard seat)

Note

Only sports seat backrests are available as replacement parts. Convert the sports seat backrest if you require a backrest for a standard seat.

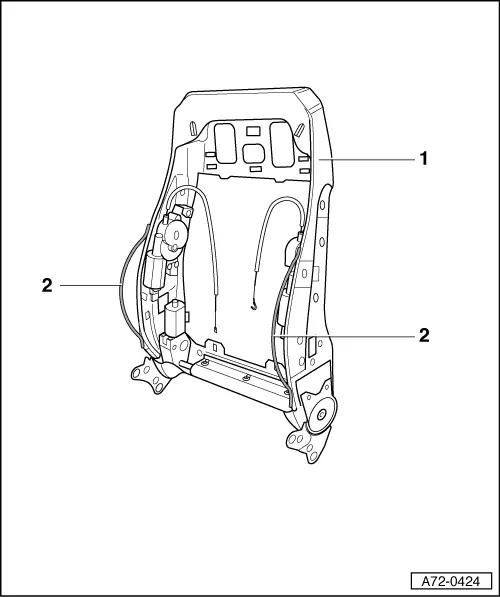

1 -	Backrest (sports seat)

t	Conversion

–	Detach support wires -2- (2x) from backrest (sports seat) -1-.

–	Restore paintwork structure according to specifications in „Vehicle Paintwork“ manual and if necessary carry out corrosion protection measures as described in „Surface Treatment/Chemical Materials“ manual.

2 -	Support wires (2x)
