Oil filter bracket - exploded view
Removing and installing engine oil cooler
Removing and installing engine oil cooler
Removing and installing engine oil cooler
Special tools and workshop equipment required
t
Drip tray for workshop hoist -VAS 6208-
t
Spring type clip pliers -VAS 5024 A-
Removing
WARNING
Hot steam/hot coolant can escape - risk of scalding.
t
The cooling system is under pressure when the engine is hot.
t
To allow pressure to dissipate, cover filler cap on coolant expansion tank with cloth and open carefully.
–
Open filler cap on coolant expansion tank
–

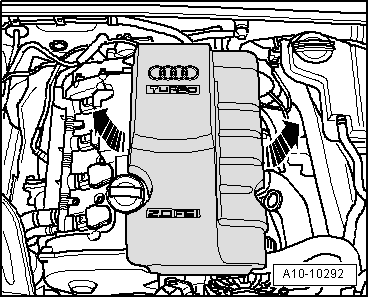

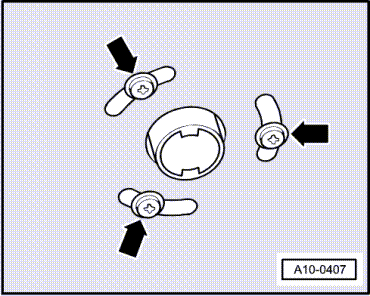

Pull off engine cover panel
-arrows-
.
–
Vehicles with auxiliary heater: remove bolts
-arrows-
securing exhaust pipe for auxiliary/additional heater to noise insulation.
–
Release quick-release fasteners
-1-
and
-2-
and take off front noise insulation.
–
If fitted, open quick-release fasteners
-3-
and remove rear noise insulation.
–
Drain off coolant
→ Chapter
.
–
Remove intake manifold and fuel rail
→ Motronic direct injection and ignition system (4-cylinder); Repair group 24; Servicing injection system
.
–
Unbolt bracket for connectors
-arrows-
from coolant pipe.
–

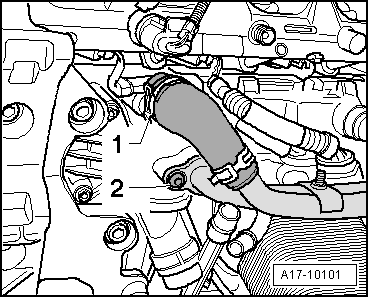

Disconnect coolant hose
-1-
.
–
Remove bolt
-2-
.
–
Detach coolant hoses
-arrows-
from coolant pipe.
–

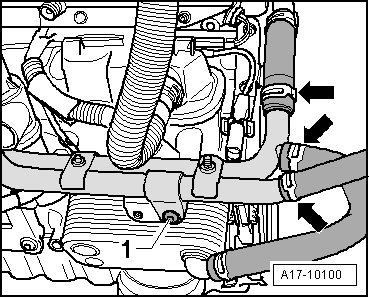

Unscrew bolt
-1-
and detach coolant pipe.
–
Remove oil cooler
-arrows-
.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torques
→ Chapter „Oil filter bracket - exploded view“
Note
t
Renew gaskets and seals.
t
Secure all hose connections with the correct type of hose clips (same as original equipment)
→ Parts catalogue
.
–
