A4 Cabriolet Mk2
| Poly V-belt drive for power steering pump, alternator and viscous fan - exploded view of components |
| 1 - | Poly V-belt |
| q | Before removing, mark direction of rotation with chalk or felt-tipped pen. If the belt runs in the opposite direction when it is refitted, this can cause breakage |
| q | Removing and installing → Chapter |
| q | Check for wear |
| q | When installing, make sure it is properly seated on pulleys. |
| 2 - | Spacer sleeve |
| q | Depending on version |
| 3 - | 22 Nm |
| 4 - | Alternator |
| q | Removing and installing → Electrical system; Rep. Gr.27 |
| 5 - | 45 Nm |
| 6 - | 22 Nm |
| 7 - | Bracket |
| q | For alternator |
| 8 - | 10 Nm |
| 9 - | 22 Nm |
| 10 - | Cover |
| q | For idler roller |
| 11 - | 22 Nm |
| 12 - | Idler roller |
| q | For poly V-belt |
| 13 - | Idler roller |
| q | For poly V-belt |
| 14 - | Cover cap |
| q | For access to toothed belt tensioning roller |
| 15 - | 45 Nm |
| 16 - | 10 Nm |
| 17 - | Bracket |
| q | For viscous fan |
| q | Removing and installing → Anchor |
| q | Viscous fan bearings cannot be renewed separately → Chapter „Removing and installing viscous fan“ |
| 18 - | 22 Nm |
| 19 - | Pulley |
| q | For viscous fan |
| q | Removing and installing → Chapter |
| 20 - | Gasket |
| q | Renew |
| 21 - | Bracket for power steering pump and oil cooler |
| q | Removing and installing → Chapter |
| 22 - | 22 Nm |
| 23 - | Power steering pump |
| q | Removing and installing → Running gear, front-wheel drive and four-wheel drive; Rep. Gr.48 |

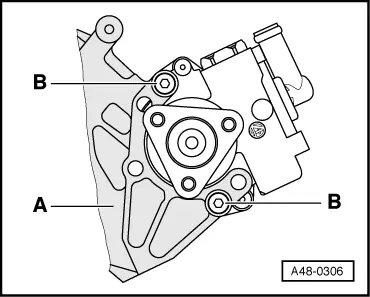

| q | Note installation position → Fig. |
| 24 - | 22 Nm |
| 25 - | Pulley |
| q | For power steering pump |

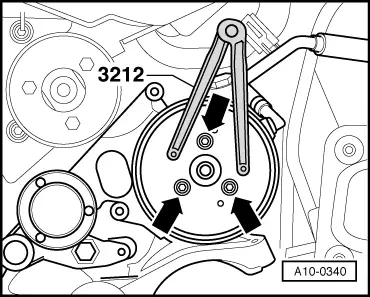

| q | Removing and installing → Fig. |
| 26 - | 22 Nm |
| 27 - | Vibration damper |
| q | With pulley for poly V-belt |
| q | Removing and installing → Chapter |
| 28 - | 22 Nm |
|
|
