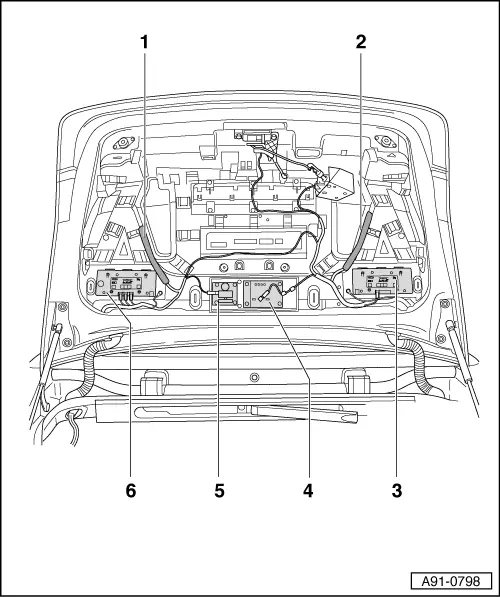

Aerials in rear lid

Aerials in rear lid
1 - Central locking and anti-theft alarm system aerial -R47-
2 - Aerial for auxiliary heating radio controlled receiver -R64-
3 - Right aerial module -R109-
q   Removing and installing → Chapter
4 - Telephone aerial -R65-
5 - Aerial for navigation system -R50-
6 - Left aerial module -R108-
q   Removing and installing → Chapter
