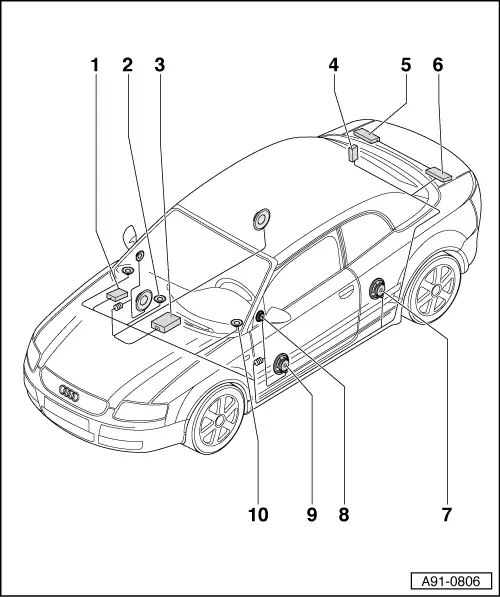

Overview of fitting locations

Overview of fitting locations
1 - CD changer -R41-
q   In glove box
q   Connectors → Chapter
q   Removing and installing → Chapter
- iPod holder -R192-
q   Connectors → Chapter
q   Removing and installing → Chapter
2 - Internal loudspeaker -R70-
q   In dash panel (front centre)
q   Removing and installing → Chapter
3 - Radio -R-
q   In centre console (top)
q   Connectors on “chorus” radio → Chapter and (from week 22/04) → Chapter
q   Connectors on “concert” radio → Chapter
q   Removing and installing “chorus” and “concert” radios → Chapter
q   Connectors on “symphony” radio → Chapter
q   Connectors on radio generation II+ → Chapter
q   Removing and installing “symphony” radio → Chapter
q   Activating/deactivating transport mode of “symphony II+” radio → Chapter
4 - Amplifier -R12-
q   In luggage compartment, behind side trim (right-side)
q   Connectors → Chapter
q   Removing and installing → Chapter
q   Connectors BOSE 25-pin → Chapter, 32-pin → Chapter
q   Removing and installing (BOSE) → Chapter
5 - Right aerial module -R109-
q   Behind boot lid trim
q   Overview → Chapter
q   Removing and installing → Chapter
6 - Left aerial module -R108-
q   Behind boot lid trim
q   Overview → Chapter
q   Removing and installing → Chapter
7 - Loudspeaker, rear left -R4- / loudspeaker, rear right -R5-
q   In side trim (bottom)
q   Removing and installing → Chapter
8 - Treble loudspeaker, front left -R20- / treble loudspeaker, front right -R22-
q   In doors (top)
q   Removing and installing → Chapter
9 - Bass loudspeaker, front left -R21-/bass loudspeaker, front right -R23-
q   In doors (bottom)
q   Removing and installing → Chapter
10 - Mid-range loudspeaker, front left -R103- / mid-range loudspeaker, front right -R104-
q   In dash panel (left and right)
q   Removing and installing → Chapter
