Rear bumper > < Removing and installing bracket for bumper

A4 Mk1

General Body Assembly
Removing and installing spoiler
Removing and installing spoiler

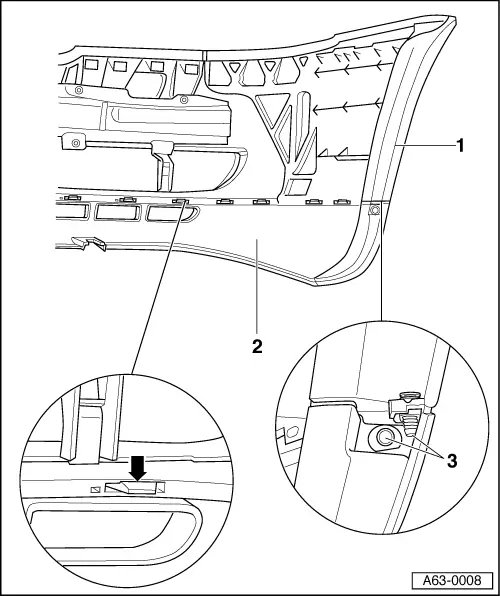

A63-0008
  • Bumper
    • ◆ Remove before dismantling spoiler.
  • Spoiler
    • ◆ To remove, pull out expanding clips -3- on both sides.
    • ◆ Disengage retainer tabs -arrow- from spoiler and pull spoiler off bumper.
  • Expanding clip
    • ◆ To remove, pull out pins and prise out expanding clips.
