2 - Anchorage point for belt buckle
General Body Assembly, Interior (Repair groups 68, 69, 70, 72, 74)
Seat belts
2 - Anchorage point for belt buckle
‒

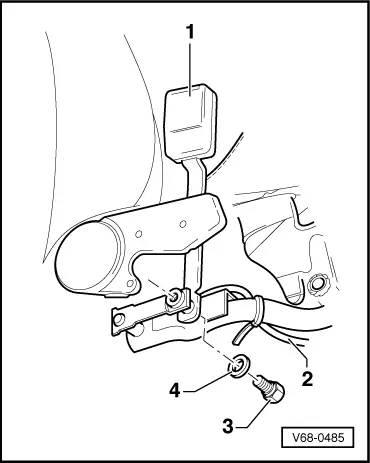

→ Remove seat
‒
Belt buckle -1-
‒
Unscrew bolt -3-.
‒
Tightening torque 60 Nm
‒
Spring lock washer -4-
‒
Detach connector -2- for belt warning system, if applicable.
