Notes:

• ◆ The tightening torques listed on this page apply only to lightly greased, oiled, phosphated, or black finished nuts and bolts.
• ◆ Additional lubricant such as engine or gearbox oil may be used, but do not use graphite lubricant.
• ◆ Do not use degreased parts.

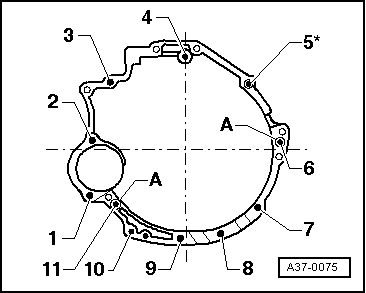

→ Securing engine to gearbox
For 4-cylinder engines (5 valve, Turbo)

    1    with nuts

A = Dowel sleeves

Bolts -3- and -5- also secure cable bracket.

→ Securing engine to gearbox
for 6-cylinder petrol engines except 2.7l 5V turbo-charged engine

    1    with nut

    2)    with retainer for ATF lines

A = Dowel sleeves

→ Securing engine to gearbox
6-cylinder TDI engines

    1    with nut

    2)    with retainer for ATF lines

    *)    with retainer for turbo charger

    *)    with retainer for cable

    5)    with additional earth connection

A = Dowel sleeves

→ Securing engine to gearbox
for 2.7l 5V turbo-charged engine

With 11 mm intermediate plate

    1    with nut

A = Dowel sleeves

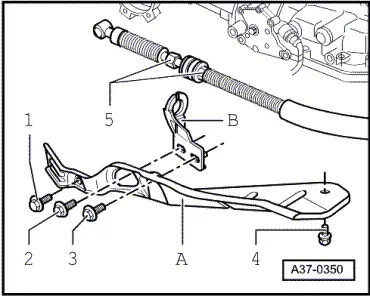

Valid for all engine/gearbox variations:
