A4 Mk1

Automatic Gearbox 01VFWD and 4WD
Checking gear oil level in rear final drive
Checking gear oil level in rear final drive

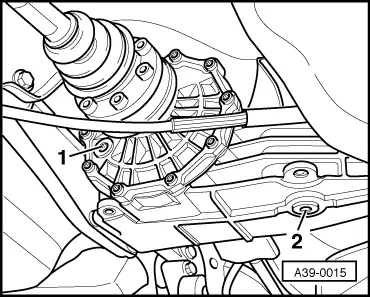

A39-0015
  • ‒ → Remove oil filler plug -1- to check final drive oil level.
    • ‒ Specified value: oil level up to lower edge of filler hole
  • ‒ Top up with gear oil, if necessary: Specification
    =>Page 00-33.
  • ‒ Fit oil filler plug.

Tightening torque

Component

Nm

Oil filler plug

35
