Extracting and driving in needle bearing for dual-mass flywheel
Extracting and driving in needle bearing for dual-mass flywheel
Extracting and driving in needle bearing for dual-mass flywheel

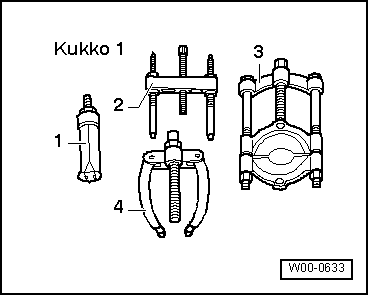

Special tools and workshop equipment required
t
Punch -3264-
t
-1-
Internal puller -Kukko 21/2-
t
-4-
Counter-support -Kukko 22/1-
Procedure
–

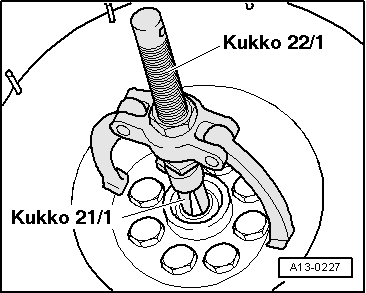

Pull out needle bearing with internal puller -Kukko 21/2- and counter-support -Kukko 22/1-.
–
Drive needle bearing into dual-mass flywheel using punch -3264-.
