Removing and installing drive plate - vehicles with automatic gearbox Special tools and workshop equipment required

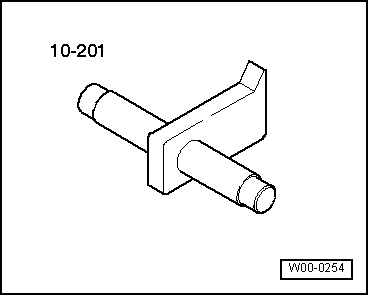

t  Counter-hold tool -10-201-

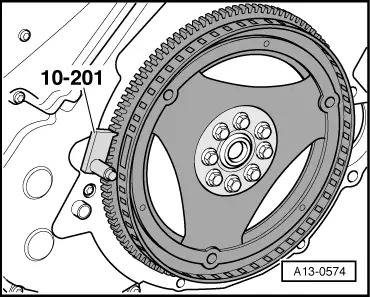

Removing l  Automatic gearbox removed → Rep. Gr.37. –  Attach counter-hold tool -10-201- in order to loosen bolts. –  Mark installation position of drive plate on engine. –  Unbolt drive plate. –  Take out shim located behind.

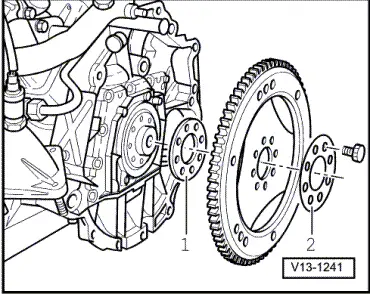

Installing –  Fit drive plate with packing plate -2- and 3.0 mm or 4.0 mm shim -1-. –  Insert at least 3 old bolts and tighten to 30 Nm.

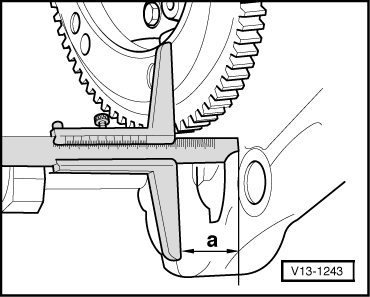

–  Measure distance -a- at three points and calculate average value. l  Specification: 18.1 … 19.7 mm.

If specification is not obtained: –  Remove drive plate again and install with different shim -1-. –  Tighten bolts to 30 Nm again. –  Repeat measurement procedure. If specification is obtained: –  Renew bolts and tighten to final setting. –  Reverse position of counter-hold tool -10-201- in order to tighten bolts. Tightening torque

Component	Nm
Drive plate to crankshaft	60 + 90° 1)
l  1) Renew bolts.
