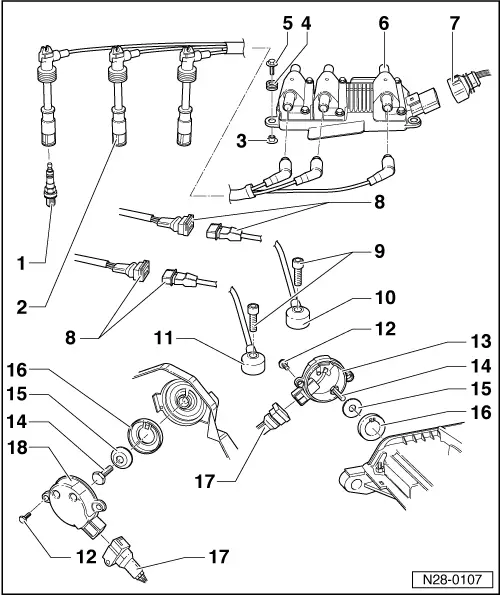

• Spark plug, 30 Nm
• ◆ Use 3122 B to remove and install
• ◆ Current values:

=> "Exhaust emission test" binder

• Spark plug connector with ignition cable
• Spacer sleeve
• Rubber grommet
• 10 Nm
• Ignition coils -N, -N128, -N158
• ◆ With output stage -N122
• ◆ With ignition cable identification, do not interchange

• 5-pin connector
• ◆ Black
• 3-pin connector
• ◆ Gold plated contacts
• 20 Nm
• ◆ Tightening torque affects function of knock sensor
• Knock sensor 2 -G66
• ◆ Cylinder bank 2
• ◆ Sensor and connector contacts gold plated
• Knock sensor 1 -G61
• ◆ Cylinder bank 1
• ◆ Sensor and connector contacts gold plated
• 10 Nm

• Hall sender -G40
• ◆ Cylinder bank 2
• 25 Nm
• Washer
• ◆ Tapered
• Rotor ring
• ◆ For Hall sender
• ◆ Pay attention to locating element on assembly
• 3-pin connector
• ◆ Black
• ◆ For Hall sender -G40-G163
• Hall sender -G163
• ◆ Cylinder bank 1
