A4 Mk1

Motronic Injection and Ignition System (4 cyl.)
Motronic self-diagnosis
Connecting fault reader V.A.G 1551 and selecting functions

A24-0028

Preconditions:

Voltage supply and engine fuses OK

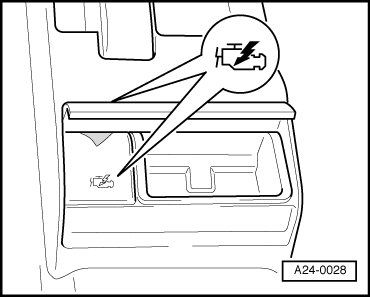

  • ‒ → Open rear ashtray (centre console) and remove cover for diagnostic connector.

A24-0029

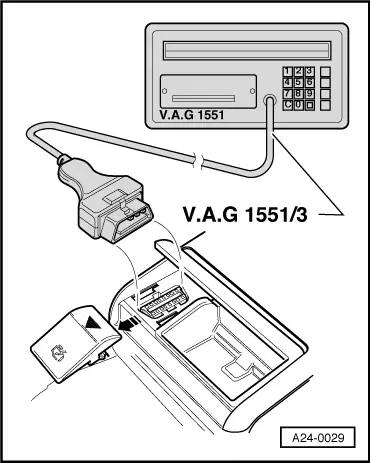

  • ‒ → Connect fault reader to diagnostic connector with diagnostic lead V.A.G 1551/3.

→ Display:
V.A.G self-diagnosis    HELP
1 - Rapid data transfer*
2 - Flash code output*

    *)    Displays appear alternately

  • ‒ If there is no readout on the display, check the voltage supply according to the faultfinding program for diagnostic lines in the "Current flow diagrams, Electrical fault-finding and fitting locations" binder.
  • ‒ Switch ignition on.
  • ‒ Switch on printer with PRINT key (indicator lamp in key illuminates).
  • ‒ Press key 1 for "Rapid data transfer" mode.

→ Display:
Rapid data transfer     HELP
Enter address word XX

Note:

When the address word 00 has been entered and confirmed with the Q button, an automatic test sequence is implemented (fault memory interrogation of all systems with rapid data transfer).

  • ‒ Press keys 0 and 1
    (01 is used to enter the address word "Engine electronics")

→ Display:
Rapid data transfer    Q
01 - Engine electronics
  • ‒ Confirm entry with Q key.

→ Display:
Rapid data transfer
Tester sends address word 01

______________________________________________

→ If one of these messages appears on the display then perform faultfinding according to the faultfinding program for diagnostic lines in the "Current flow diagrams, Electrical fault-finding and fitting locations" binder.
Rapid data transfer     HELP
Control unit not responding!

or

Rapid data transfer     HELP
Communications problem

or

Rapid data transfer     HELP
K-wire not switching to ground

or

Rapid data transfer     HELP
K-wire not switching to positive

______________________________________________

The control unit identification and the coding appear in the display.

→ Engine code letters ADP
8D0937557B    1.6L R42V    MOTR HS D02 ⇒
Coding 04001    WSC    00000


→ Engine code letters ADR
8D0907557A    1.8L R4/5V    MOTR HS D02 ⇒
Coding 04001    WSC    00000


→ Engine code letters AEB
8D0907557    1.8L R4/5VT    MOTR HS D02 ⇒
Coding 04001    WSC    00000
  • ◆ 8DO . . . . . . . : Control unit number (see also spare parts list)
  • ◆ 1.6l or 1.8l: Engine capacity
  • ◆ R42V: In-line engine, 4-cylinder, 2-valve
    R4/5V: In-line engine, 4-cylinder, 5-valve
    R4/5VT: In-line engine, 4-cylinder, 5-valve, turbocharged
  • ◆ MOTR: Motronic
  • ◆ HS: Manual gearbox
    AT: Automatic gearbox
  • ◆ D . . : Control unit data status (software version)
