A4 Mk2

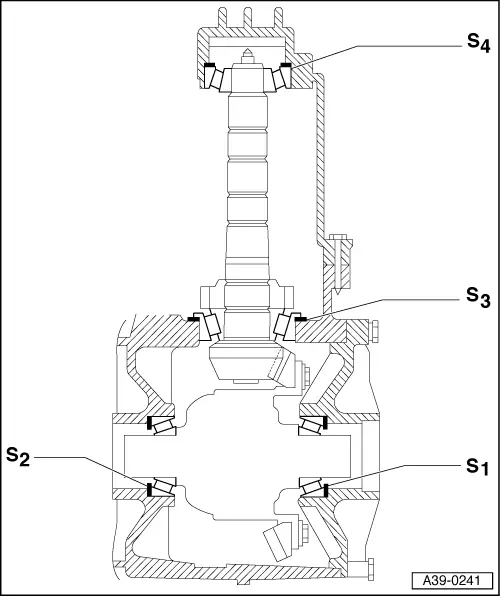

| Position of shims |
Note| Table of adjustments when renewing individual components of gearbox → Chapter. |
| S1 - | Shim for crown wheel in cover for final drive |
| S2 - | Shim for crown wheel in gearbox housing |
| S3 - | Shim for pinion shaft in gearbox housing |
| S4 - | Shim for pinion shaft in gearbox cover |
