Removing and installing over-centre spring > < Removing and installing clutch pedal switch F36

A4 Mk2

Removing and installing clutch pedal switch for engine startF194
Removing and installing clutch pedal switch for engine start -F194-
  Note
To ensure a secure fit, the clutch pedal switch for engine start may only be installed once.
Removing
–  Remove cover beneath dash panel → Rep. Gr.68.
–  Detach electrical connector on clutch pedal switch for engine start.
–  Release clutch pedal switch for engine start by turning 45° anti-clockwise and take out of guide.

Installing

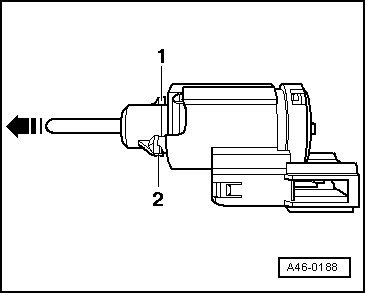

–  Pull out plunger all the way in direction of -arrow- before installing clutch pedal switch for engine start.
  Note
-Item 1- and -item 2- can be disregarded.
  A46-0188
–  Press clutch pedal -1- all the way down by hand in direction of -arrow- and hold in this position when installing clutch pedal switch for engine start.
–  Guide clutch pedal switch for engine start-item 2- through mounting hole, press plunger against clutch pedal and secure clutch pedal switch for engine start by turning 45° clockwise.
–  Connect electrical connector -3- for clutch pedal switch for engine start.
–  Install cover beneath dash panel → Rep. Gr.68.
