A4 Mk2

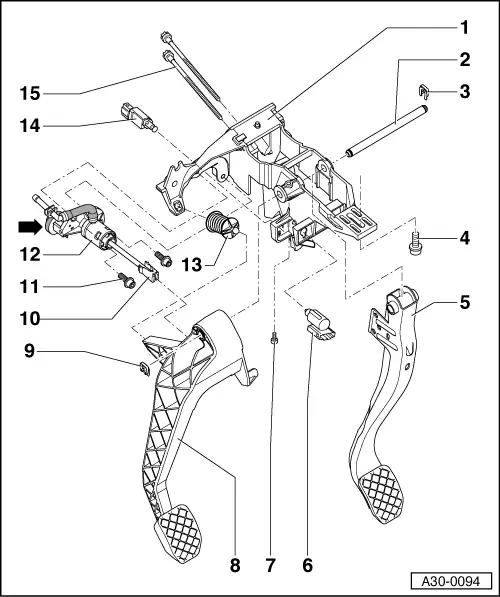

| Pedal cluster (LHD vehicles) - exploded view |
| 1 - | Mounting bracket |
| q | Removing and installing → Chapter |
| 2 - | Pivot pin for clutch and brake pedal |
| 3 - | Retaining clip |
| 4 - | Hexagon socket head bolt, 25 Nm |
| 5 - | Brake pedal |
| q | Maintenance-free bearing, do not grease |
| 6 - | Clutch pedal switch -F36- |
| q | Removing and installing → Chapter |
| q | Renew |
| q | Can only be installed once |
| 7 - | Hexagon socket head bolt, 5 Nm |
| q | Secures clutch and brake pedal pivot pin |
| 8 - | Clutch pedal |
| q | Removing and installing → Chapter |
| 9 - | Retaining clip |
| 10 - | Retaining clip |
| q | Removing and installing → Item |
| 11 - | Hexagon socket head bolt, 20 Nm |
| q | 2x |
| 12 - | Clutch master cylinder |
| q | Removing and installing → Chapter |
| q | Seal -arrow- must not be removed |
| 13 - | Over-centre spring |
| q | Black side points towards clutch pedal |
| q | Removing and installing → Chapter |
| q | For correct version, refer to → Electronic parts catalogue |
| 14 - | Clutch pedal switch for engine start -F194- |
| q | Only for USA |
| q | Vehicle can only be started when clutch is fully depressed (clutch pedal switch activated). |
| q | Removing and installing → Chapter |
| q | Renew |
| q | Can only be installed once |
| 15 - | Torx bolt, 25 Nm |
| q | For securing brake master cylinder/brake servo to mounting bracket |
