Removing and installing clutch pedal switchF36
Removing and installing clutch pedal switch -F36-
  Note
To ensure a secure fit, the clutch pedal switch may only be installed once.
Removing
–  Remove storage compartment on driver's side → Rep. Gr.68.

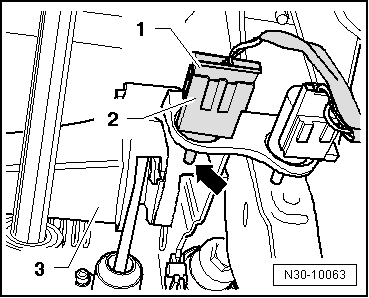

–  Detach electrical connector -1- on clutch pedal switch -F36-.
–  Release clutch pedal switch -F36--item 2- by turning 45° anti-clockwise and take out of guide.
  N30-10063
Installing

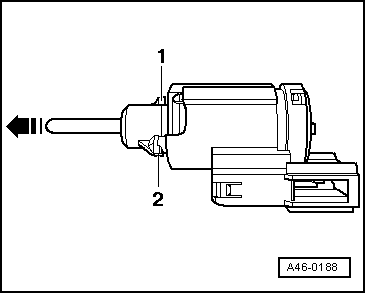

–  Pull out plunger -arrow- all the way before installing clutch pedal switch -F36-.
  A46-0188
l  The clutch pedal should be in the normal position (i.e. not pressed down).
–  Guide clutch pedal switch -F36- through mounting hole, press plunger against clutch pedal and secure switch by turning 45° clockwise.
–  Detach electrical connector at clutch pedal switch -F36-.
–  Install storage compartment on driver's side → Rep. Gr.68.
  N30-10057
