A4 Mk2

Removing and installing clutch pedal switch for engine startF194

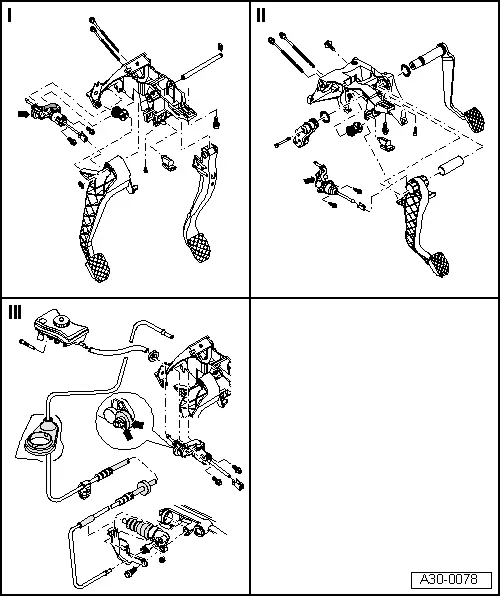

Removing and installing clutch pedal switch for engine start -F194-
  Note
To ensure a secure fit, the clutch pedal switch for engine start may only be installed once.
Removing
–  Remove storage compartment on driver's side → Rep. Gr.68.
–  Detach electrical connector on clutch pedal switch for engine start -F194-.
–  Release clutch pedal switch for engine start -F194- by turning 45° anti-clockwise and take out of guide.

Installing
–  Pull out plunger -arrow- all the way before installing clutch pedal switch for engine start -F194-.
  A46-0188
–  Press clutch pedal -1- all the way down by hand -arrow- and hold in this position when installing switch.
–  Guide clutch pedal switch for engine start -F194--item 2- through mounting hole, press plunger against clutch pedal and secure switch by turning 45° clockwise.
–  Connect electrical connector -3- for clutch pedal switch for engine start -F194-.
–  Install storage compartment on driver's side → Rep. Gr.68.
  A30-10042
